This is a simple tutorial to look for Margie’s Healing Spell Value.

Setup

For a start, we have no idea what value to look for, but we do know what the spell do:

  1. It targets an ally.

  2. It heals 40 HP. The target gains +40 HP as a result.

So we’ll use Bart vs Ramsus battle at Aveh Palace. Since we are looking for the source data, we’ll make 3 save states to rollback to:

  1. A save state on Margie’s room. We’ll call it BEFORE MAP state.

  2. A save state in the middle of dialog, right before the battle starts. We’ll call it BEFORE BATTLE state.

  3. A save state before Margie’s turn. We’ll call it BEFORE TURN state.

There is only one playable character during the fight, so we only need to monitor Bart’s HP until Margie heals him.

There are many ways to locate Bart’s HP.

  1. If you emulator has "cheat search" or "memory search" function (e.g. mednafen), you can use that.

  2. You can use Cheat Engine to scan for the value, but the result address is for the emulator, so you’ll need to do some math to adjust it back.

  3. You can also find it by opening uncompressed save states with any hex editor. Similar to Cheat Engine above, you also need to do some adjustment to the result address.

  4. But unlike Cheat Engine, save state is a normal file. You can extract the RAM part to a new file first and avoid the need to do math later.

Backtracing For A Value

In any case, Bart’s HP is at RAM 800ccd34 duing battle. Put a WRITE breakpoint there, you’ll get this on Margie’s turn.

margie heal 1
at = d0000 + s0 - 32cc
   = d0000 + 0 - 32cc
   = ccd34
v0 = (int16)(*RAM + ccd34)
v1 = (int16)*s3
   = (int16)(*RAM + c4078)
v0 += v1
at = 10000 + s4 - 717c
   = 10000 + c3eb0 - 717c
   = ccd34
(int16)(*RAM + ccd34) = v0

So v0 is Bart’s HP, and v1 is Margie’s +40 HP healing we are looking for. It is loaded from s3.

Load back BEFORE TURN state and put a WRITE breakpoint on RAM 800c4078 to see where it came from.

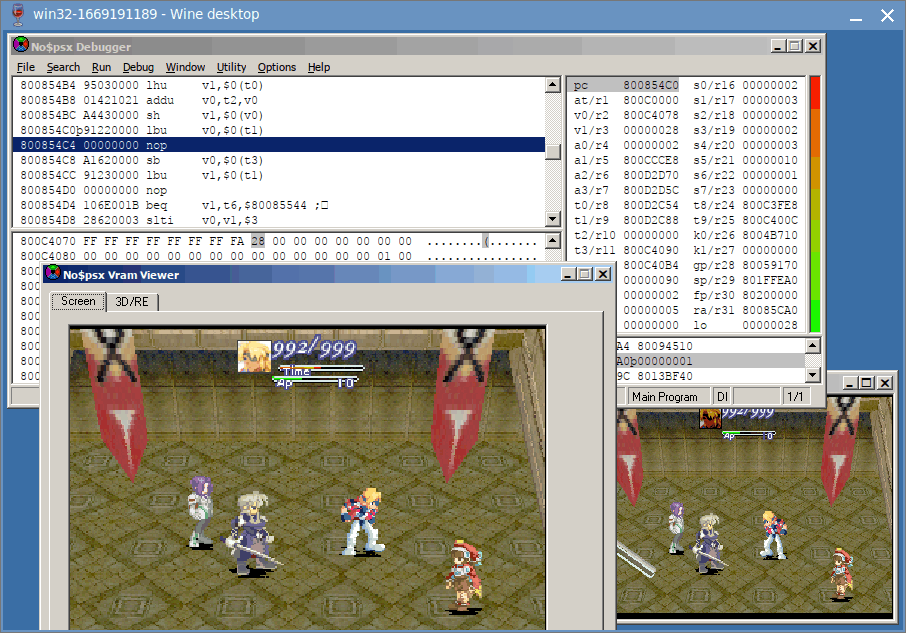

margie heal 2

The value is copied from t0. Again, load back BEFORE TURN state and put a WRITE breakpoint on RAM 800d2c54 to backtrace it.

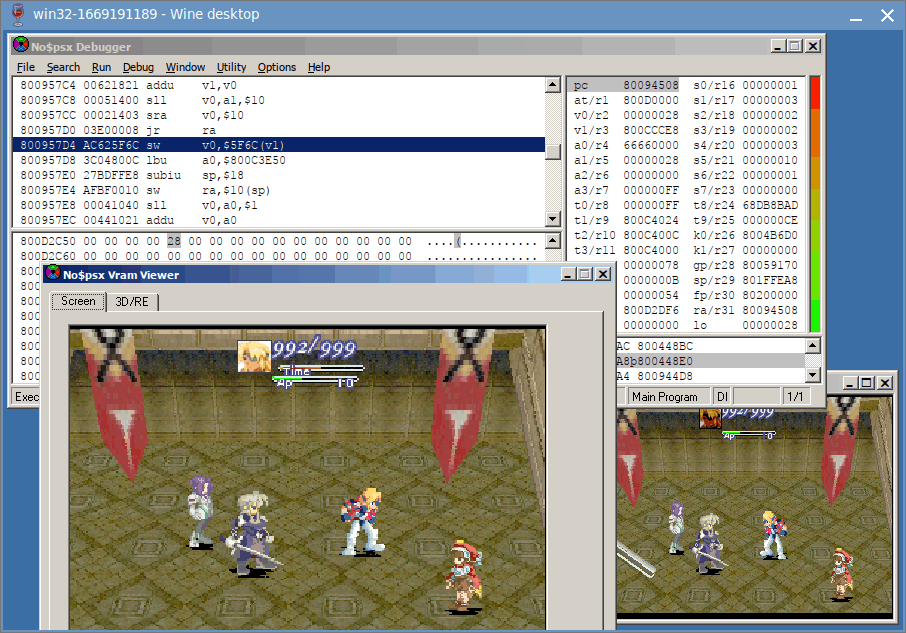

margie heal 3

Now here is the tricky part. The pc has already "returned", but no$psx is nice enough to stay on the delay slot.

Looking at v0, it still holding 0x28. And from the instruction above, v0 is (a1 << 10) >> 10 (the bit shift are a common ASM trick to turn unsigned int to signed int).

Let scroll upward to discover how a1 is calculated.

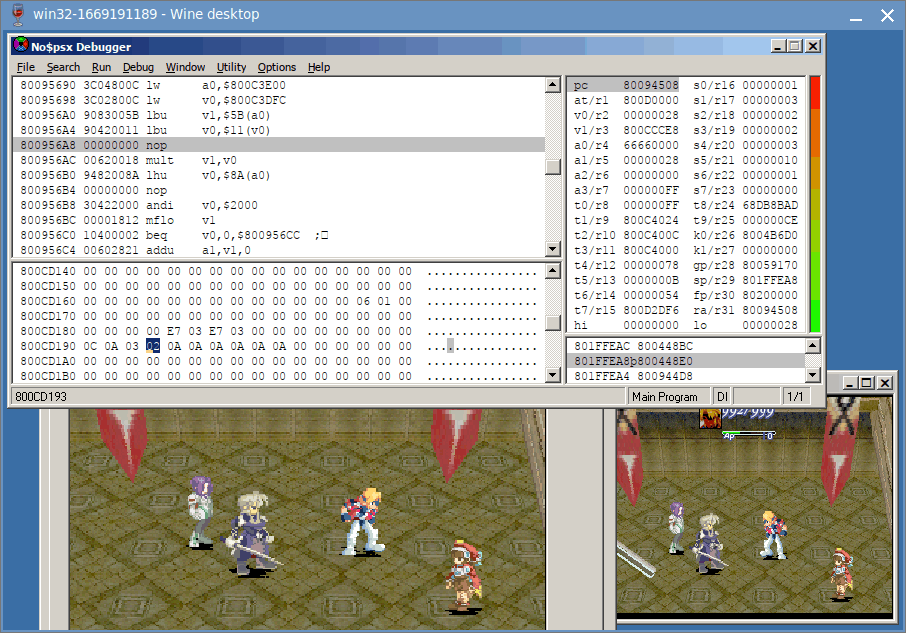

margie heal 4a

As you scrolling up, you’ll keep seeing a1 is from v1 and v0, but then v1 is from a1, and v0 is from v1. So it’s a bunch of nothing.

Eventually, you’ll reach this part, where a1 is v1 * v0, and v1 and v0 are values loaded from somewhere else.

Important
Bookmark this ASM address!

Following v1, we follow the pointer at a0, and reached RAM 800cd138 + 5b, we get the value 2. Looking at the data struct, it seems like character stats. Margie has Ether = 2.

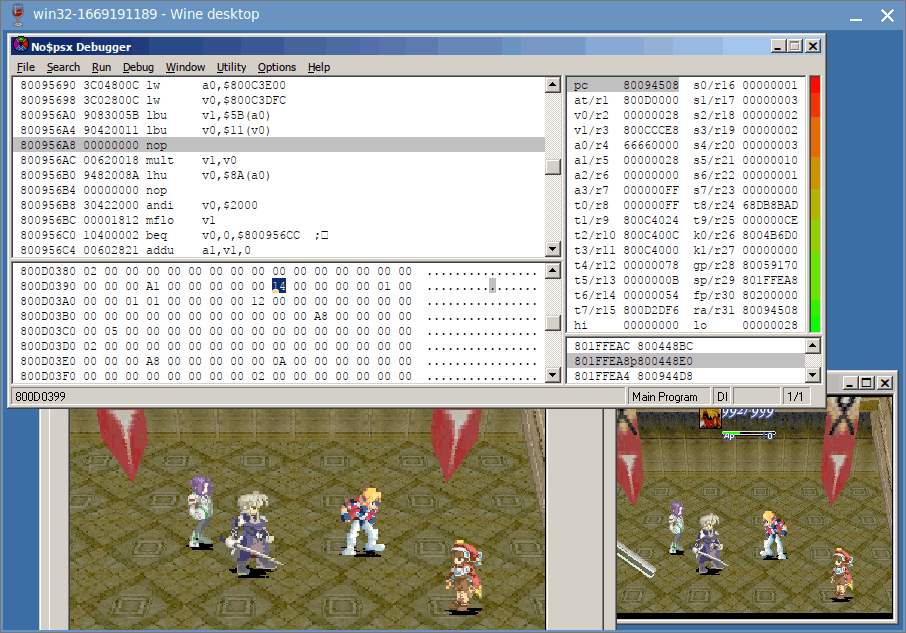

margie heal 4b

Following v0, we follow the pointer at v0, and reached RAM 800d0388 + 11, we get the value 0x14.

IT FITS! 2 * 0x14 = 0x28. So the formula is Margie’s Ether 2 * Spell Power 0x14 = 0x28 HP Heal!

Now we are getting somewhere! Load back BEFORE TURN state and put a WRITE breakpoint here to see where 0x14 came from!

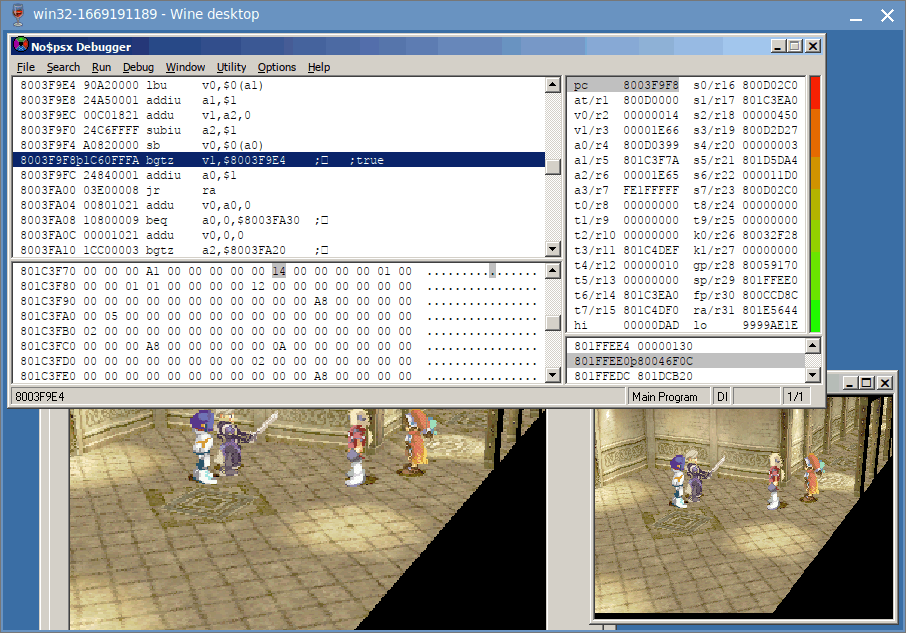

margie heal 5b

Unfortunately the breakpoint didn’t triggered. It means the data wasn’t update during the battle.

It also means we need to go further back to BEFORE BATTLE state and re-trigger the battle from the start.

Indeed, the breakpoint is triggered! The 0x14 is copied from a1.

Load back BEFORE BATTLE state again and put (yet another) WRITE breakpoint at RAM 801c3f7a

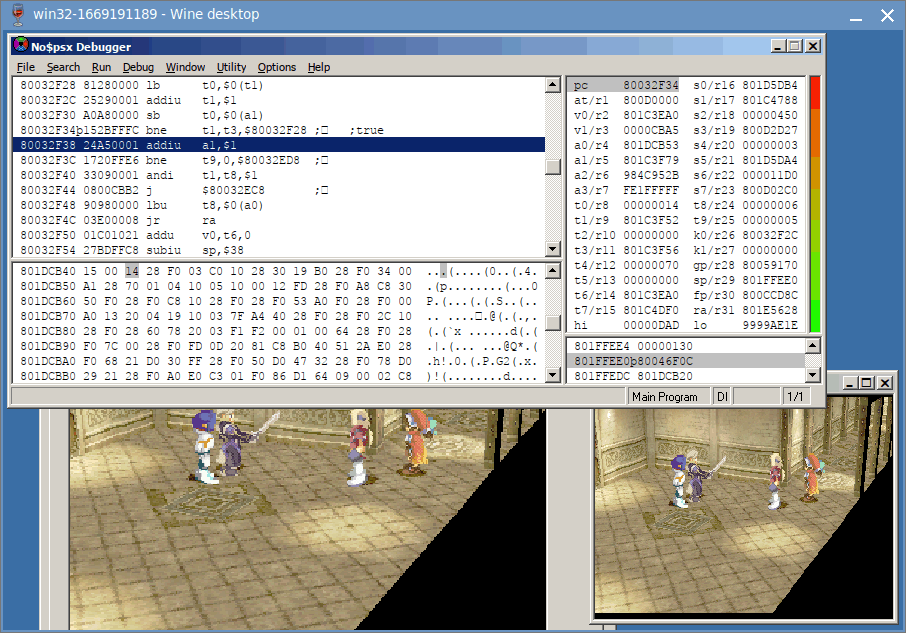

margie heal 6b

And now we find ourself reading decompression code. a0 is the pointer to original compressed data, loaded directly from BIN/CUE.

You can use this data to find the correct game file from the disc.

Locating the Relevant Files

Xenogears looks for its game files by LBA (Logical Block Address) or CD sector address. The list of LBA for the whole game is on SLPS/SLUS main executable at offset 0x804 to 0x8800. It is then loaded to RAM at 0x80010004 to 0x80018000. So we put an READ breakpoint to the entire area.

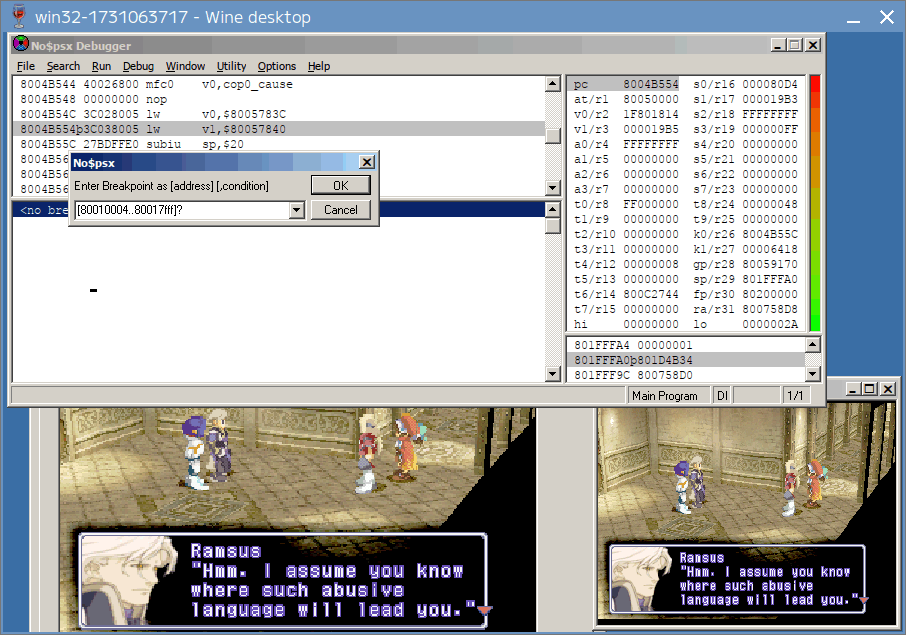

xeno file 1

The LBA list is 7 bytes per entry. Byte 0,1,2 is an int24 for LBA, and byte 3,4,5,6 is an int32 for its filesize. If the filesize is negative, then the entry is an directory.

xeno file 2

Basically, the ASM is checking if it is going to load a subfile. You can ignore lbu (load byte unsigned) instructions when it is on byte 3,4,5,6.

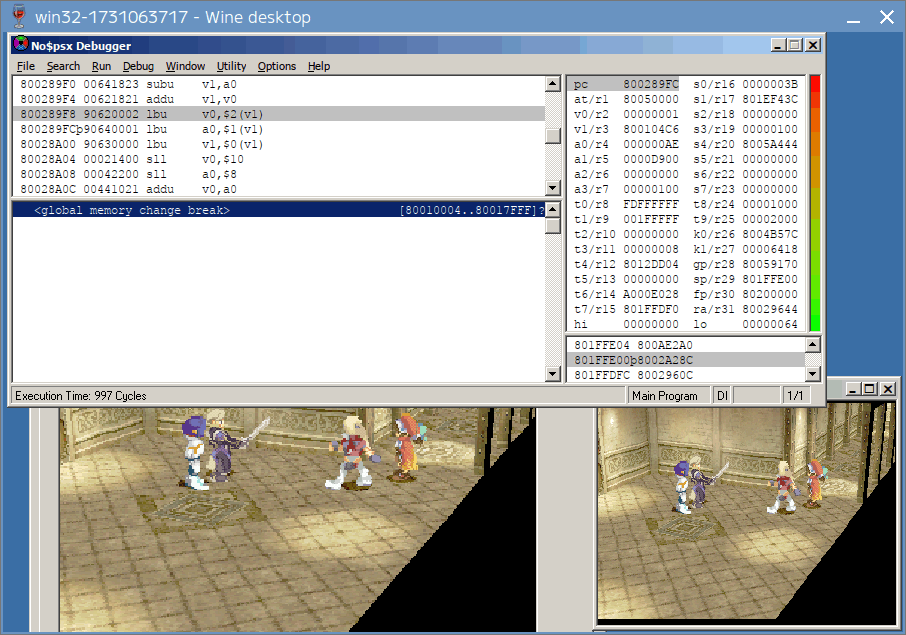

xeno file 3

Byte 0,1,2 is the actual attempt to load the file. The value you need to take note is v1, and it has value 0x800104c6.

With that, we can use this formula to calculate the file id

(v1 - entry start) / entry size
= (800104c6 - 80010004) / 7
= 0174.bin
Caution
Make sure there are no remainder after the divide!

Noting down every v1 starting from BEFORE MAP state until Margie heals Bart. The content of each file is then identified by referring to xeno-iso.txt as notes.

v1 file notes

BEFORE MAP state

800118e6

910

map data - map 152 Aveh Palace

800118ed

911

map texture - map 152 Aveh Palace

Map fully loaded. Player in control.

Cutscene triggered

80010e2e

518

Face - Margie

80010dfd

511

Face - Bart

80010e04

512

Face - Bart

80010ea5

532

Face - Ramsus

BEFORE BATTLE state

800104c6

174

wds/sample data - bgm 20 Crimson Knight

800104cd

175

smds/midi data - bgm 20 Crimson Knight

8001010e

38

[LZ][OVER] Battle executable

80014777

2613

seds

8001477e

2614

[PAK-LZ] Data

80014785

2615

[OVER]

80014a10

2708

stats/name - mon 45 Miang, Ramsus, Margie, Fei

80014a17

2709

texture/animation - mon 45 Miang, Ramsus, Margie, Fei

Battle Transition Effect start

80014c9b

2801

3d model data

80014ca2

2802

3d model data

Battle Transition Effect end

800151c6

2990

Bart battle sprites

8001543c

3080

[PAK]

80015443

3081

[PAK]

8001544a

3082

seds

8001546d

3087

[OVER]

80015474

3088

[PAK-LZ]

8001547b

3089

[PAK-LZ]

80015482

3090

seds

80015458

3084

wds/sample data

pre-Battle Dialogue

80010e9e

534

Face - Miang

80010e04

512

Face - Bart

80010e2e

518

Face - Margie

80010e9e

534

Face - Miang

8001532b

3041

seds

80015332

3042

wds/sample data

80010e04

512

Face - Bart

80010ea5

535

Face - Ramsus

80010dfd

511

Face - Bart

80010e2e

518

Face - Margie

80010dfd

511

Face - Bart

Battle fully loaded. Player in control.

BEFORE TURN state

80015466

3086

wds/sample data

80015458

3084

wds/sample data

8001523d

3007

Bart battle sprites - Deathblows

And with that, we have limit our search from the whole game 3700+ files to about 40 files.

Checking the files between "BEFORE BATTLE state" and "pre-Battle Dialogue", excluding any known irrelevant files, I can get a match on file 2614.bin , offset 0x7022.

There might be duplicates on other game files. You can use this method to find them. If you cannot trigger certain file to load no matter what you do, most likely that file is a leftover dummy.

Potential Bug

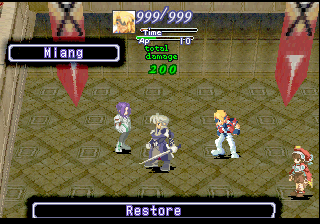

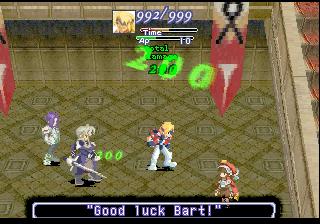

heal 200 margie heal 200 miang

When I changed the spell value from 20 to 100, I noticed not only Margie heals Bart 200 HP, but Miang also heals Ramsus 200 HP.

Apparently both Margie and Miang are using the same spell. It may not be what you want, but that’s whole another story on fixing it.

Hope it helps!
